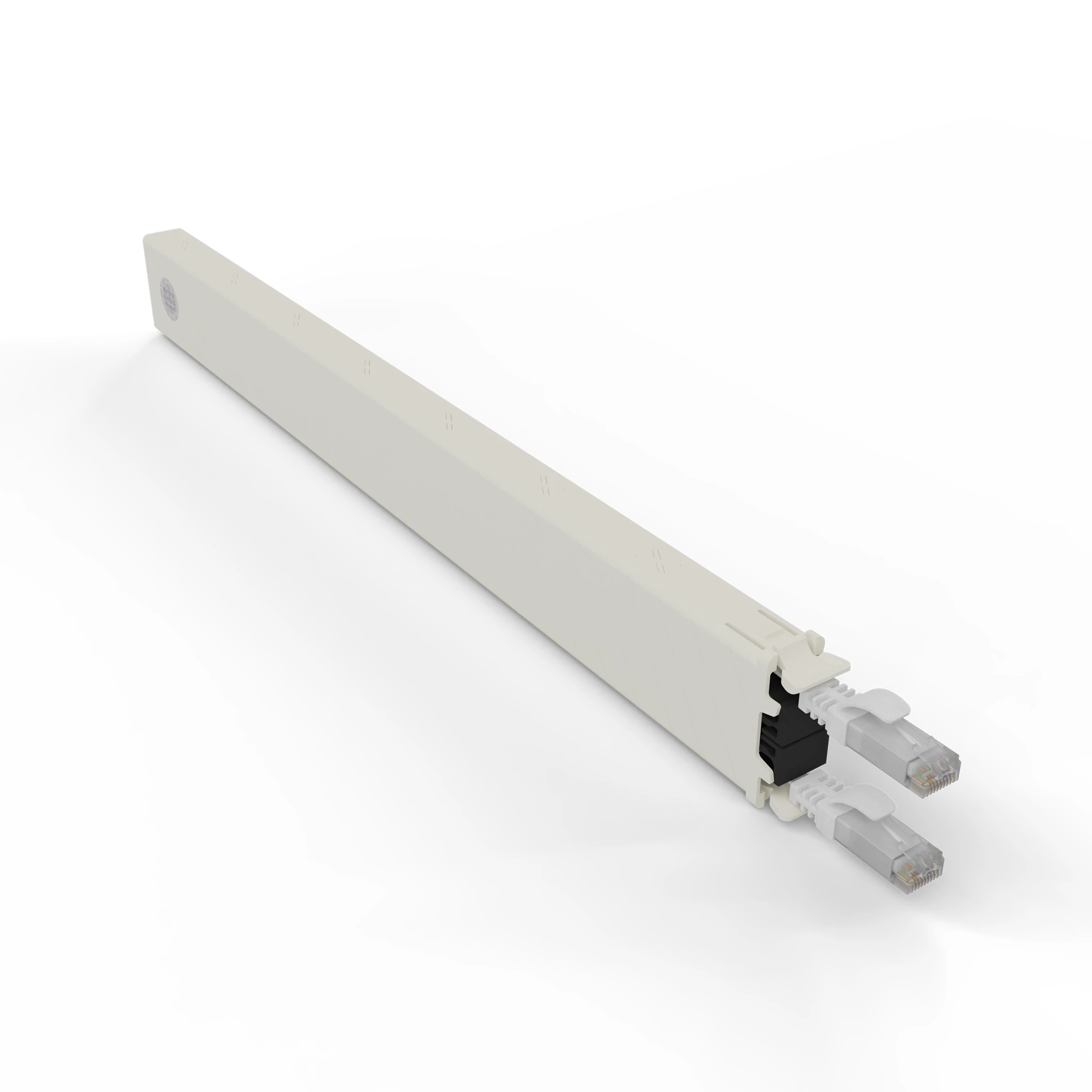

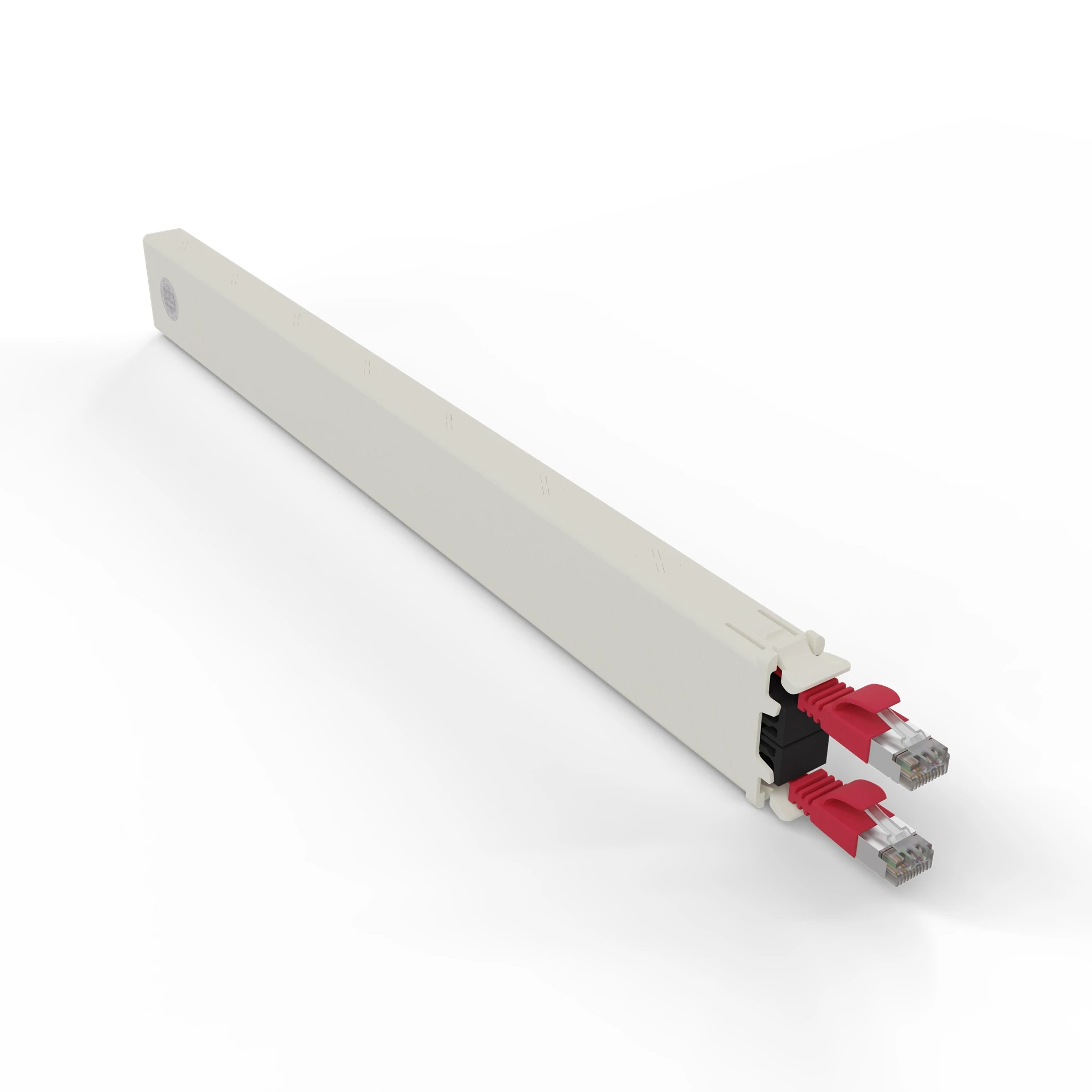

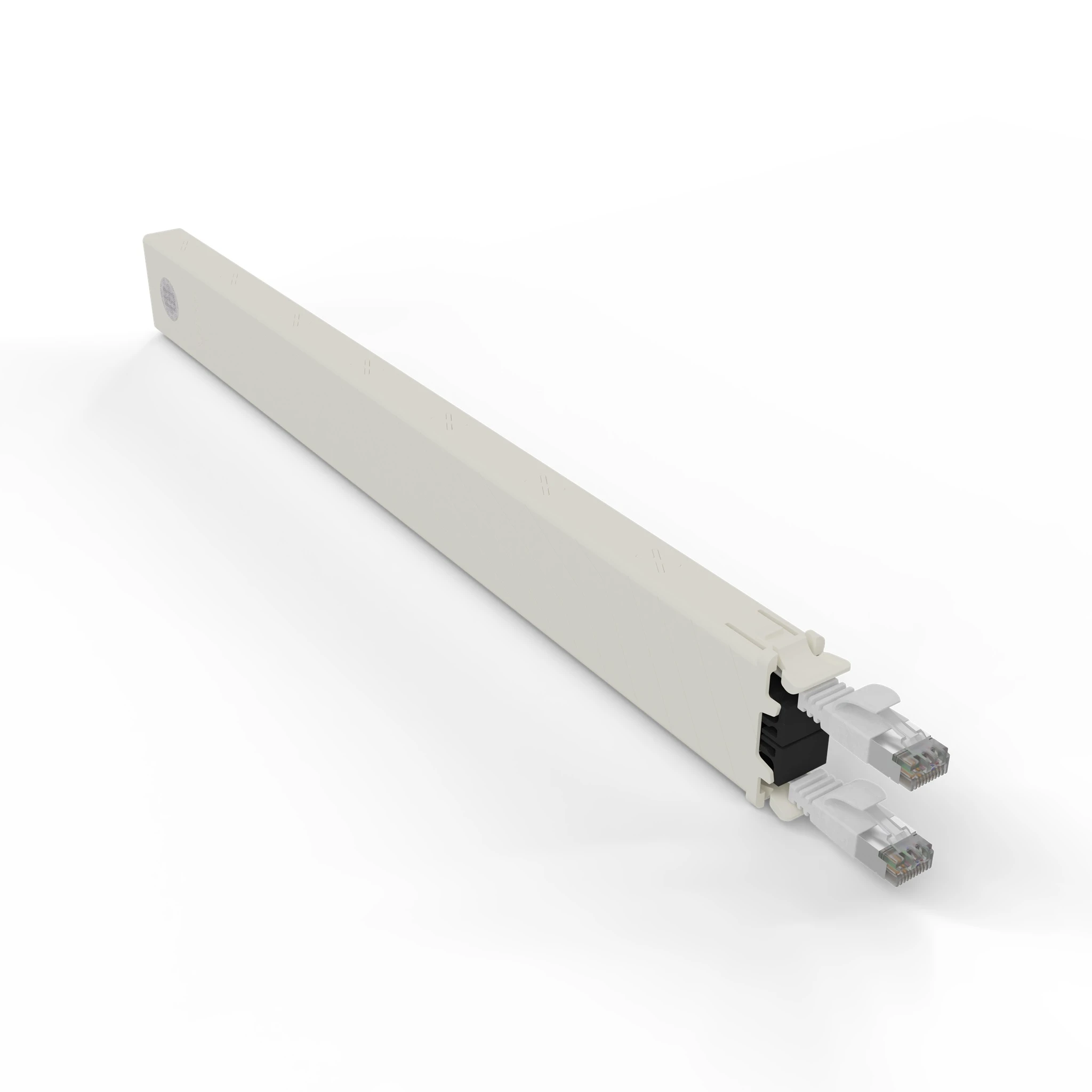

patchbox.one 8RU / Cat6a Cassettes
Want to build your own patchbox.one? Fill your Frame with up to 24 Cable Cassettes and have it your way – choose the cable type, color and connector type you desire. The Frame with patchbox.one / Cassette / 8RU can be mounted with the /dev/mount, while a Frame with patchbox.one / Cassette / 30RU or 46RU must be mounted with its mounting rails.
✓ Twisted Pairs
✓ ISO/IEC 11801 Channel Class Ea
✓ Cables always in your desired length
✓ Power your devices with PoE++ (UTP) and PoE (STP)
✓ Backward compatible with the PATCHBOX Plus+/365
✓ 10-Year Warranty on patchbox.one & its cables
$24.00
Technical Specification
-
STP Cable: Flat Cat.6a U/FTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG36, 100% stranded copper, PVC jacket, PoE (802.3af), RoHS compliant
-
UTP Cable: Flat Cat.6a U/UTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG30, 100% stranded copper, PVC jacket, PoE++ (802.3bt, Type 3 (60 W)), RoHS compliant
-
Connector Cat.6a: RJ45 shielded plug, pins gold plated, snagless booted
-
Cable length: 2.6 ft cover 8RU
-
Cassette Profiles: ABS and RAL9001
-
Plastic Parts: Polyoxymethylene POM
-
Operating Temperature Range: 50°F — 140°F
-
Ambient Humidity Non-Condensing: 10% – 90%
-
Gross Weight: 0.44lbs
-
Packaging Dimensions: 17.04″ x 1.10″ x 1.96″ WxDxH
-
HS-Code: 8544 4210
Items Included
- 1 x patchbox.one / Cassette / 8RU / Cat.6a
Manufacturer Instructions & Manuals
Payment Methods
The new standard in network cabling
The PATCHBOX is a long-term cable management solution that saves companies time and money by significantly improving IT workflow and reducing downtime.
Downtime can be Costly
According to Gartner, one minute of downtime costs $5600. With the PATCHBOX, downtimes are significantly shortened which reduces losses and gets your business back online quickly.
Installation, Maintenance & Troubleshooting
Are up to 8x faster with the PATCHBOX – making work for IT technicians easier and staff & customers happier, while companies benefit financially.
50% More Rack Space
Since each PATCHBOX includes an 0RU Patchcatch cable manager, using other 1RU cable managers is no longer necessary. This means up to 50% more of precious rack space
Manufacture Warranty
We offer a 5-year manufacturer warranty on the PATCHBOX Plus+ and PATCHBOX 365 – including the cables.
There is no space for another Beauty and Beast fairy tale.
Show your network rack some love & affection. With PATCHBOX you have everything you need to transform it from a Beast into a Beauty.
OUR SOLUTIONS
Conventional cabling vs. PATCHBOX
Eight times faster installation: By using PATCHBOX you could patch eight entire network racks in the time of one when using conventional cabling. See the comparison in our video!
