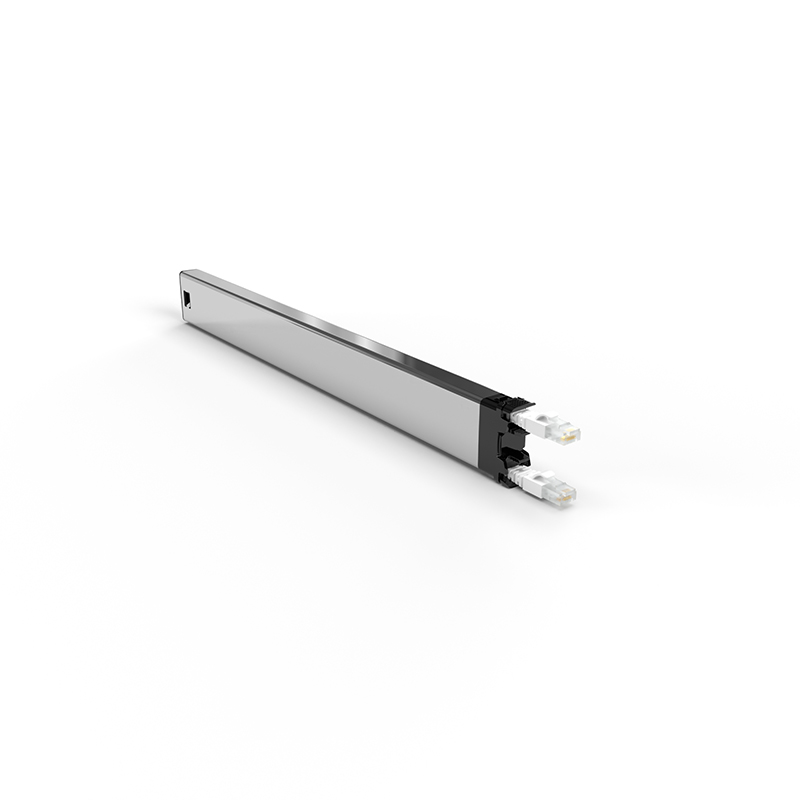

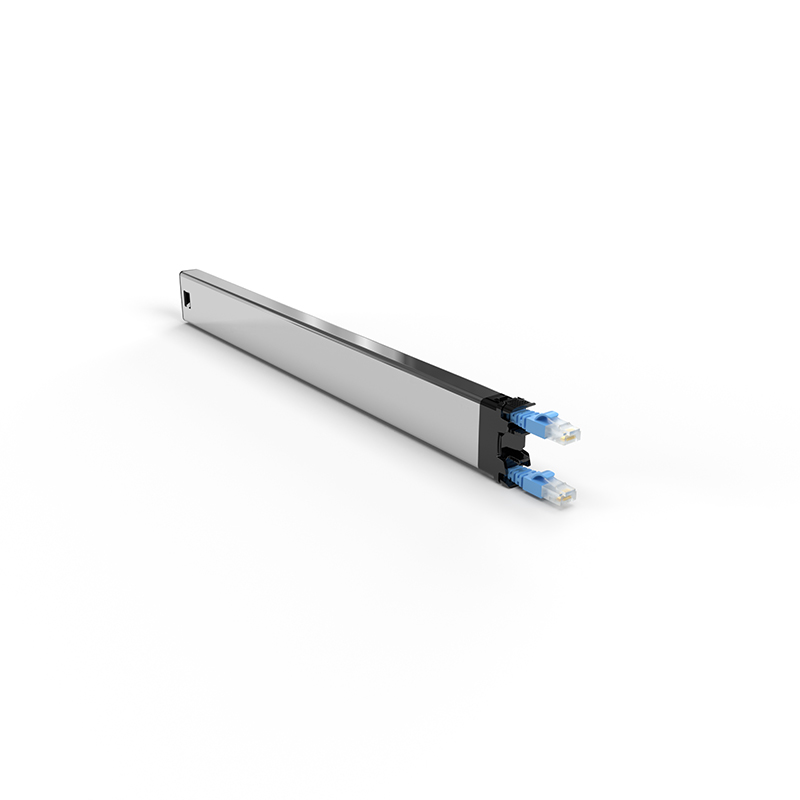

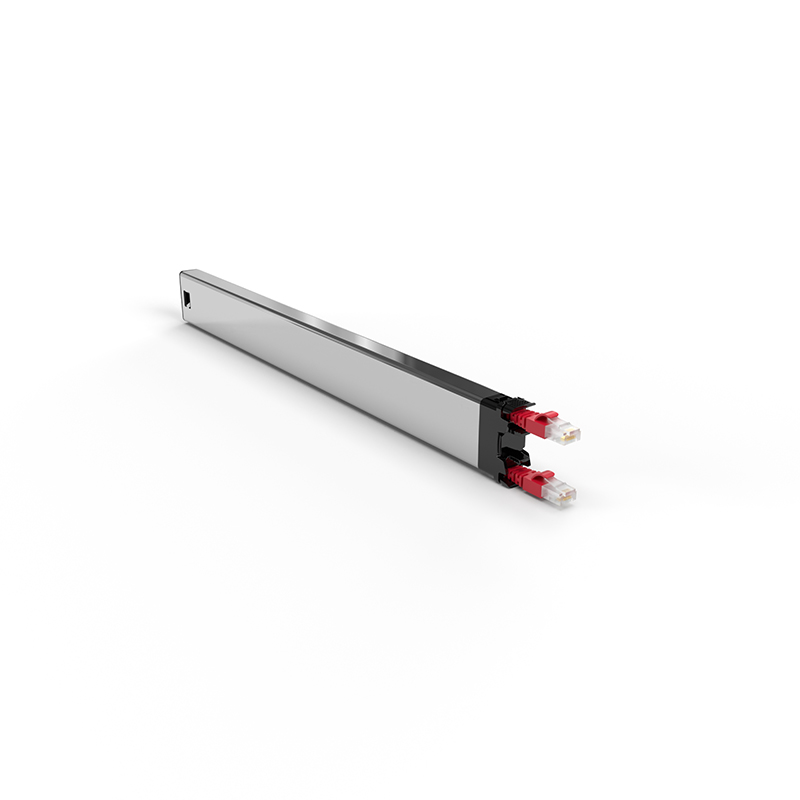

PATCHBOX 365 Cat. 6a Cassette
Build your own PATCHBOX with various cable types and colors of your choice! The PATCHBOX Frame offers space for 24 Cable Cassettes. The flat Cat.6a cable inside PATCHBOX Cassette 365 is 31.50 inches long and covers up to 8RU. You can decide between UTP and STP shielding and eight different cable colors for better overview.
Technical Specification
- STP Cable: Flat Cat.6a U/FTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG36, 100% stranded copper, PVC jacket, PoE (802.3af), RoHS compliant
- UTP Cable: Flat Cat.6a U/UTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG30, 100% stranded copper, PVC jacket, PoE++ (802.3bt, Type 3 (60 W)), RoHS compliant
- Connector: RJ45 shielded plug, pins gold plated, snagless booted
- Cable length: 31.50″ cover 8RU
- Cassette Profiles: Stainless steel, laser-welded
- Plastic Parts: Polyoxymethylene POM
- Operating Temperature Range: -4°F — 140°F
- Ambient Humidity Non-Condensing: 10% – 90%
- Gross Weight: 0.88lbs
- Packaging Dimensions: 27.17″ x 1.97″ x 1.97″ WxDxH
- HS-Code: 8544 4210
Items Included
- 1 x PATCHBOX 365 STP / UTP Cassette with Cat.6a cable
Download Files
$23.00
Payment Methods
The new standard in network cabling
The PATCHBOX is a long-term cable management solution that saves companies time and money by significantly improving IT workflow and reducing downtime.
Downtime can be Costly
According to Gartner, one minute of downtime costs $5600. With the PATCHBOX, downtimes are significantly shortened which reduces losses and gets your business back online quickly.
Installation, Maintenance & Troubleshooting
Are up to 8x faster with the PATCHBOX – making work for IT technicians easier and staff & customers happier, while companies benefit financially.
50% More Rack Space
Since each PATCHBOX includes an 0RU Patchcatch cable manager, using other 1RU cable managers is no longer necessary. This means up to 50% more of precious rack space
Manufacture Warranty
We offer a 5-year manufacturer warranty on the PATCHBOX Plus+ and PATCHBOX 365 – including the cables.
There is no space for another Beauty and Beast fairy tale.
Show your network rack some love & affection. With PATCHBOX you have everything you need to transform it from a Beast into a Beauty.
OUR SOLUTIONS
Conventional cabling vs. PATCHBOX
Eight times faster installation: By using PATCHBOX you could patch eight entire network racks in the time of one when using conventional cabling. See the comparison in our video!
