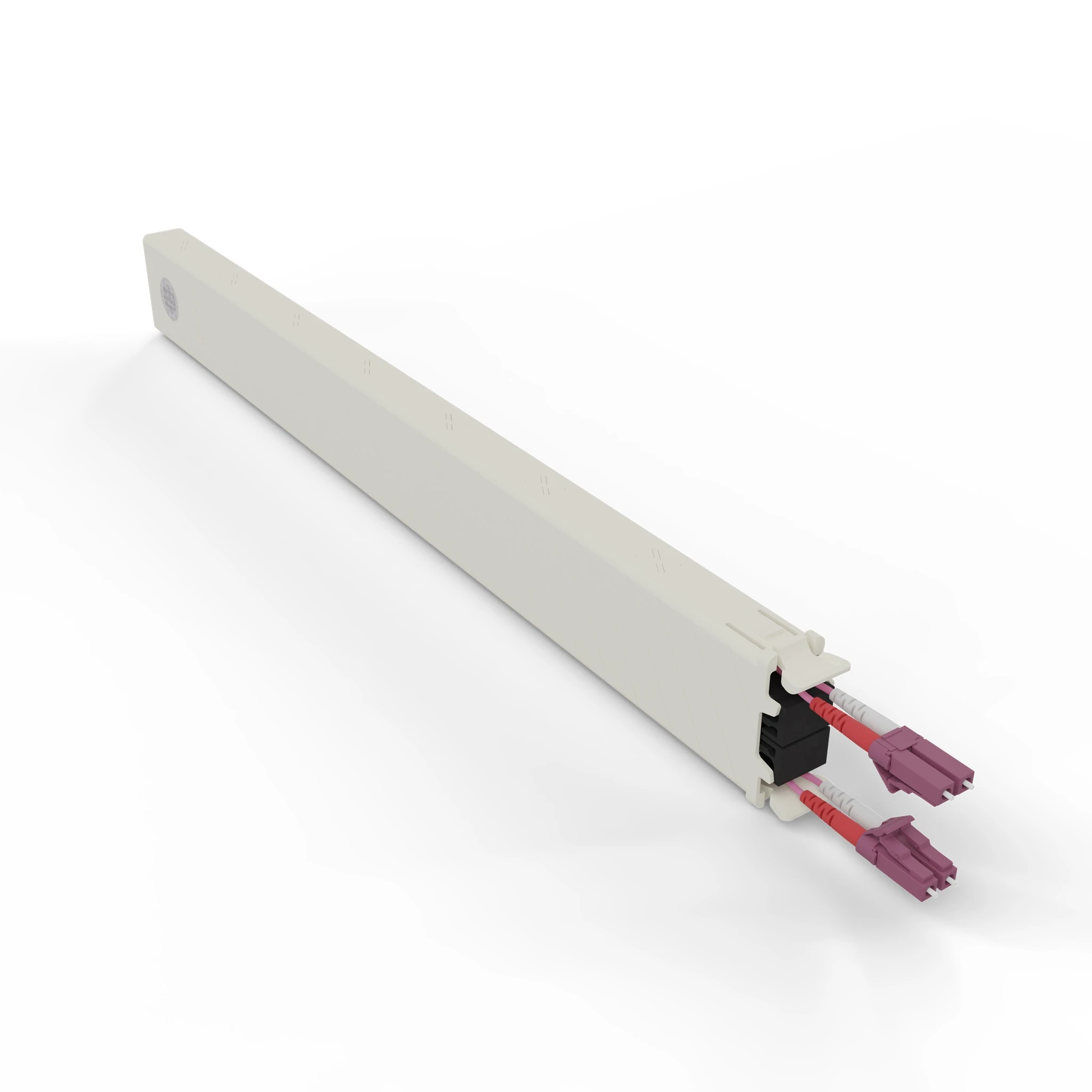

patchbox.one / 8RU Fiber Optic cassettes
NEW
patchbox.one / 8RU Fiber Optic cassettes - Image 2
patchbox.one / 8RU Fiber Optic cassettes - Image 3

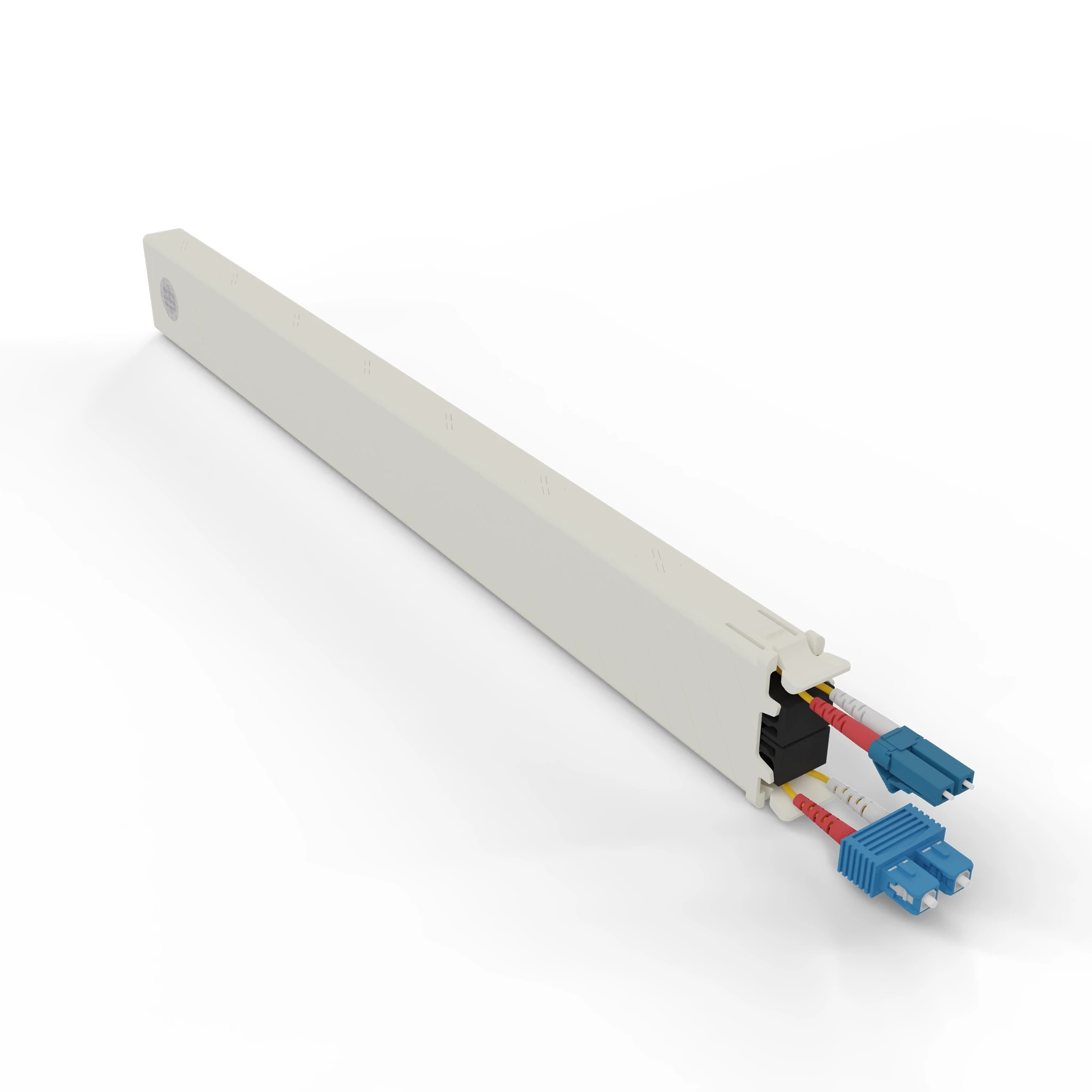

patchbox.one / 8RU Fiber Optic cassettes - Image 4

patchbox.one / 8RU Fiber Optic cassettes

Want to build your own patchbox.one? Fill your Frame with up to 24 Cable Cassettes and have it your way – choose the cable type and connector type you desire. The Frame with patchbox.one / Cassette / 8RU can be mounted with the /dev/mount, while a Frame with patchbox.one / Cassette / 30RU or 46RU must be mounted with its mounting rails.
✓ Super flexible Corning® ClearCurve® Fiber Optic Cables
✓ Cables always in your desired length
✓ 10/40/100 Gb/s
✓ Backward compatible with the PATCHBOX Plus+/365
✓ 10-Year Warranty on patchbox.one & its cables

$28.00

Technical Specification
  • OS2 Cable OS2 RBS 9μ/125μ, G.657.B3, LSZH, Yellow, Single-Mode, RoHS compliant
  • OM4 Cable OM4 RBS 50μ/125μ, LSZH, Erika Violet, Multi-Mode, RoHS compliant
  • Connector LC Duplex – LC Duplex / LC Duplex – SC Duplex
  • Cable Length 2.6 ft cover 8RU
  • Cassette Profiles ABS and RAL9001
  • Plastic Parts Polyoxymethylene POM
  • Operating Temperature Range 50°F — 140°F
  • Ambient Humidity Non-Condensing 10% – 90%
  • Gross Weight 0.48 lbs
  • Packaging Dimensions (W x D x H) 17.32″ x 1.18″ x 1.97″ WxDxH
  • HS-Code 8544 7000
Items Included
  • 1 x patchbox.one / Cassette / 8RU / OM4 or OS2
Manufacturer Instructions & Manuals

Tech Specs

Fiber Optic Cable Info Folder

Instructions

Payment Methods

Payment-Processors
PATCHBOX_Slider_Image (1)

The new standard in network cabling

The PATCHBOX is a long-term cable management solution that saves companies time and money by significantly improving IT workflow and reducing downtime.

E

Downtime can be Costly

According to Gartner, one minute of downtime costs $5600. With the PATCHBOX, downtimes are significantly shortened which reduces losses and gets your business back online quickly.

E

Installation, Maintenance & Troubleshooting

Are up to 8x faster with the PATCHBOX – making work for IT technicians easier and staff & customers happier, while companies benefit financially.

E

50% More Rack Space

Since each PATCHBOX includes an 0RU Patchcatch cable manager, using other 1RU cable managers is no longer necessary. This means up to 50% more of precious rack space

E

Manufacture Warranty

We offer a 5-year manufacturer warranty on the PATCHBOX Plus+ and PATCHBOX 365 – including the cables.

PBX_Comparison_Image

There is no space for another Beauty and Beast fairy tale.

Show your network rack some love & affection. With PATCHBOX you have everything you need to transform it from a Beast into a Beauty.

OUR SOLUTIONS

Conventional cabling vs. PATCHBOX

Eight times faster installation: By using PATCHBOX you could patch eight entire network racks in the time of one when using conventional cabling. See the comparison in our video!
