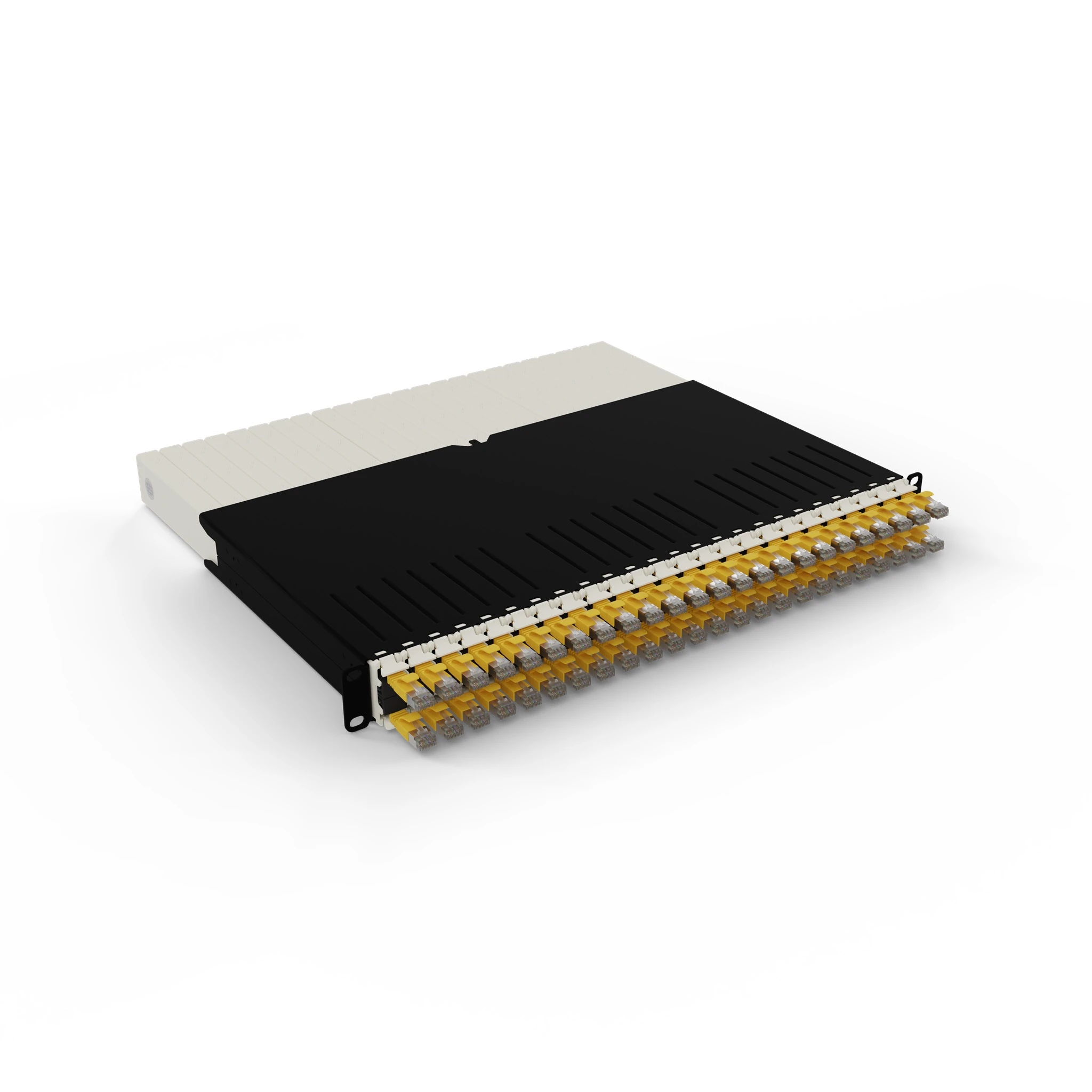

patchbox.one / 8RU Cat6a Complete Units
Keep your network rack organized in the long term and minimize downtime with the patchbox.one, consisting of 24 retractable cables (available as Cat.6a and Fiber Optic) and the Patchcatch, a 0RU Cable Management.
✓ Twisted Pairs
✓ ISO/IEC 11801 Channel Class Ea
✓ Power your devices with PoE++ (UTP) and PoE (STP)
✓ 14.37″ Installation Depth
✓ For 2-Post Racks and 4-Post Racks
✓ 10-Year Warranty on patchbox.one & its cables
$618.00
Technical Specification
- STP Cable: Flat Cat.6a U/FTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG36, 100% stranded copper, PVC jacket, PoE (802.3af), RoHS compliant
- UTP Cable: Flat Cat.6a U/UTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG30, 100% stranded copper, PVC jacket, PoE++ (802.3bt, Type 3 (60 W)), RoHS compliant
- Connector Cat.6a: RJ45 shielded plug, pins gold plated, snagless booted
- Cable length: 2.6 ft cover 8RU
- Frame: RAL9005 powder coated steel
Cassette Profiles: ABS and RAL9001 - Plastic Parts: Polyoxymethylene POM
- Operating Temperature Range: 50°F — 140°F
- Ambient Humidity Non-Condensing: 10% – 90%
- Gross Weight: 14.77 lbs
- Packaging Dimensions: 23.11″ x 21.92″ x 2.16″ WxDxH
- HS-Code: 8544 4210
Items Included
- 24 x patchbox.one / Cassette / 8RU / Cat.6a
- 1 x patchbox.one / Frame
- 6 x Patchcatch
- 2 x /dev/mount
- 4 x Hex Nuts
Manufacturer Instructions & Manuals
Payment Methods
The new standard in network cabling
The PATCHBOX is a long-term cable management solution that saves companies time and money by significantly improving IT workflow and reducing downtime.
Downtime can be Costly
According to Gartner, one minute of downtime costs $5600. With the PATCHBOX, downtimes are significantly shortened which reduces losses and gets your business back online quickly.
Installation, Maintenance & Troubleshooting
Are up to 8x faster with the PATCHBOX – making work for IT technicians easier and staff & customers happier, while companies benefit financially.
50% More Rack Space
Since each PATCHBOX includes an 0RU Patchcatch cable manager, using other 1RU cable managers is no longer necessary. This means up to 50% more of precious rack space
Manufacture Warranty
We offer a 5-year manufacturer warranty on the PATCHBOX Plus+ and PATCHBOX 365 – including the cables.
There is no space for another Beauty and Beast fairy tale.
Show your network rack some love & affection. With PATCHBOX you have everything you need to transform it from a Beast into a Beauty.
OUR SOLUTIONS
Conventional cabling vs. PATCHBOX
Eight times faster installation: By using PATCHBOX you could patch eight entire network racks in the time of one when using conventional cabling. See the comparison in our video!
